A 13" kit utilizing 4-piston calipers, aluminum hats, machined 6061 AL radial brackets, and laser cut brackets to bolt up to the factory axle without modification. Designed fit 73-84 Ford F100, F150 trucks and Bronco with Big Ford Old Style axle flanges and a 2.36" offset. This kit is designed and machined in-house. Includes drilled/slotted rotors and internal drum style parking brake assembly.
NOTE: Fits bolt-in style sealed bearing axles, not tapered roller bearing (unless it has been converted to a sealed bearing).

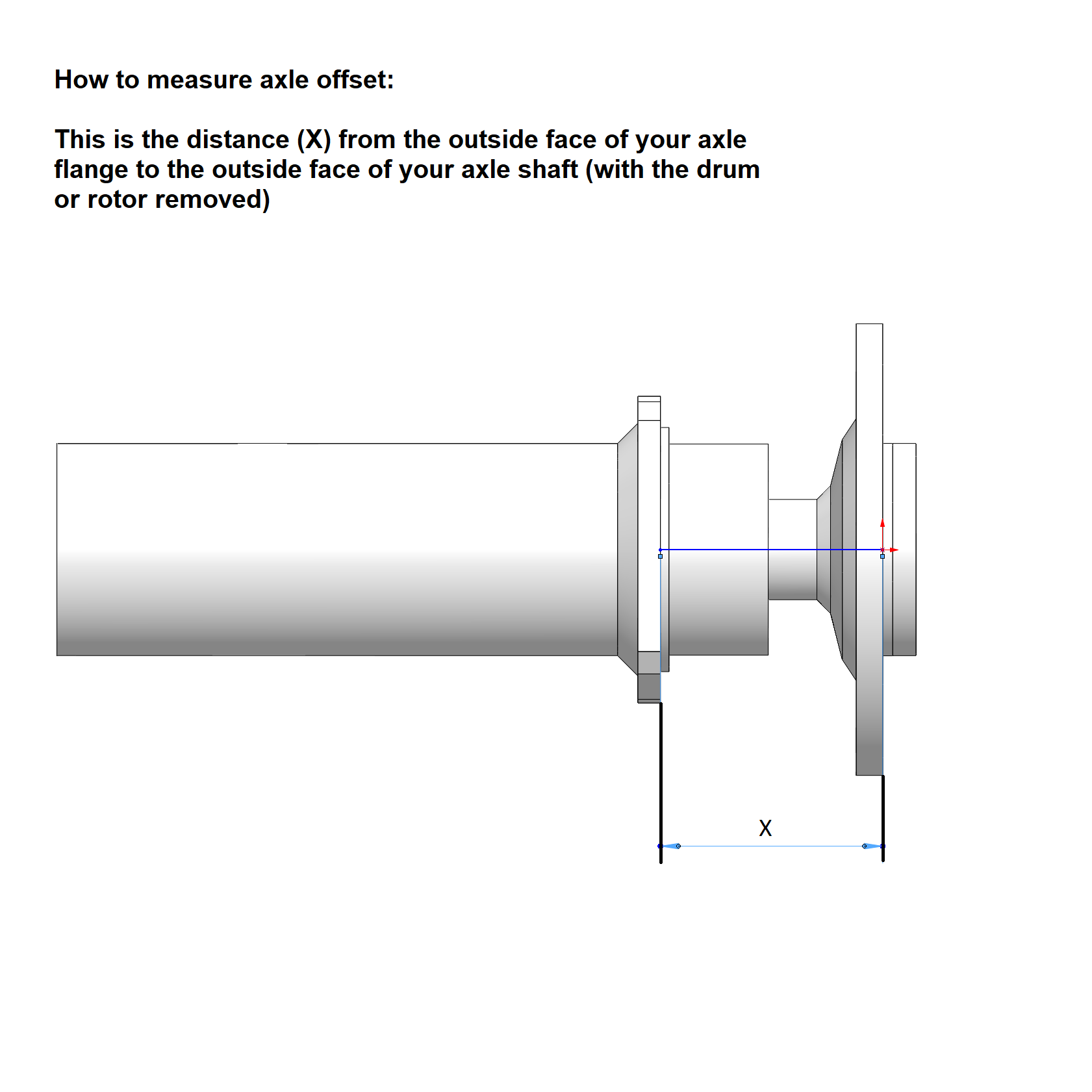

Please verify your flange dimensions with the image below. This can be done without removing anything simply by measuring the flange at the back side of the drum. Even if your model is listed below, if it does not have the correct flange measurements then the kit will not fit.
Wheel size requirement: Fits inside most 17" wheels.
